Power Dividers and Combiners

DMM2518

This Multi-octave unit is designed utilizing microstrip technology in a slim form factor allowing for tight packaging configurations. It covers all the frequency bands from .5 -1 GHz, 1 - 1.5 GHz, 1.5 - 2 GHz, 2 - 4 GHz, 4 - 8 Ghz, 8 - 15 Ghz, 15 - 16 Ghz, 16 - 18 Ghz , 18 - 20 Ghz and is very popular for applications such as serial data transmit/receive systems, test systems, and general purpose lab use. Design package accommodates SMA, N, BNC and TNC connectors. Specific performance values are frequency dependent. Electrical performance shown in table below is typical.

FEATURES:

  • Small Size & Weight
  • T configuration
  • Standard SMA Connectors (N, BNC, TNC optional)

Finish: Chemical Conversion Coating per MIL-DTL-5541 Class 3 (optional paint available upon request)
Marking: All units supplied with P/N and date code on polyester label (special marking available upon request)
Electrical Test: All units tested on a Go/No-go basis (plotted data available upon request). Specifications indicated are subject to change. Unless otherwise specified, electrical properties correspond to use with standard SMA connectors.

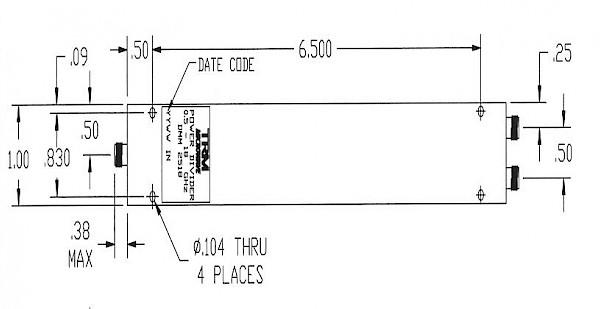

Dimensions: All dimensions are expressed in inches, (1 inch = 25.4mm). All dimensions indicated are subject to change. Unless otherwise specified, tolerances for decimals are ±0.02 for .XX and ±0.005 for .XXX. Tolerances for angles are ±0°30'.
Temperature: Units designed to operate -55° to +85° C.

General Parameters:
Type: 2-WAY
Freq Range: 0.5-18 GHz
Insertion Loss: 2 dB
Isolation: 15 dB
VSWR1: 1.50:1
VSWR2: 1.45:1
Amplitude Bal: 0.5 dB
Phase Bal: 8 Degree
Input Power: 30 W
